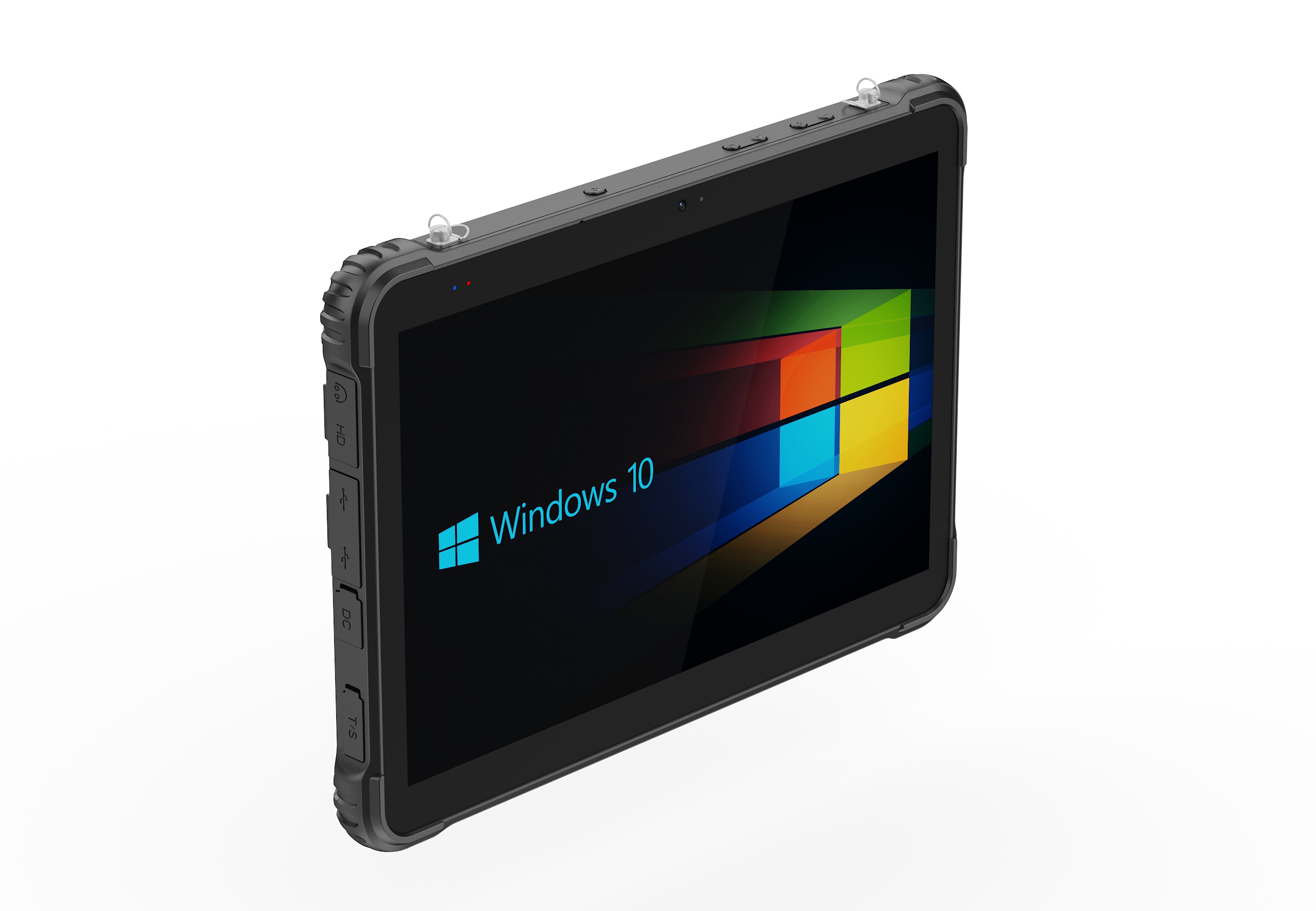

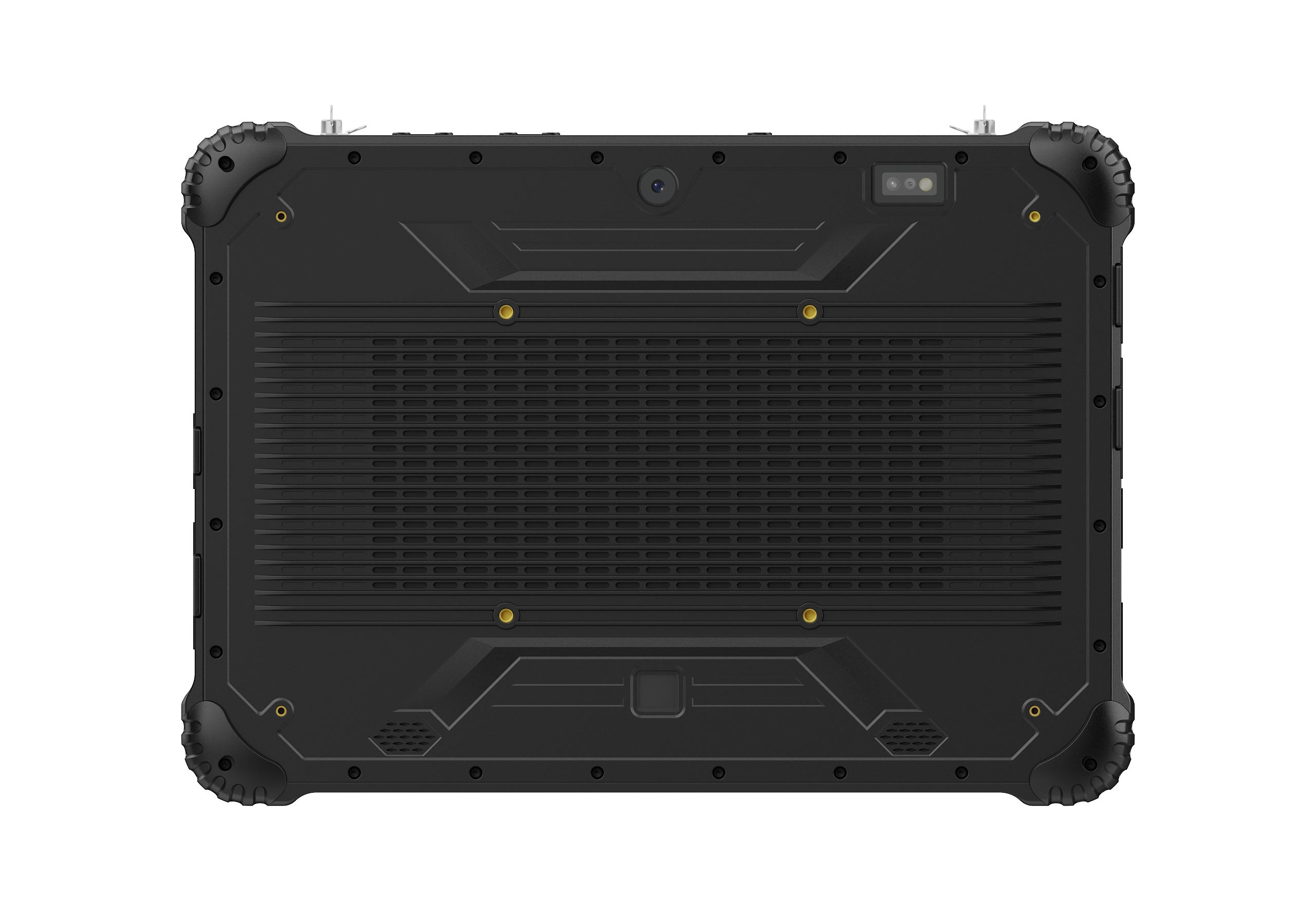

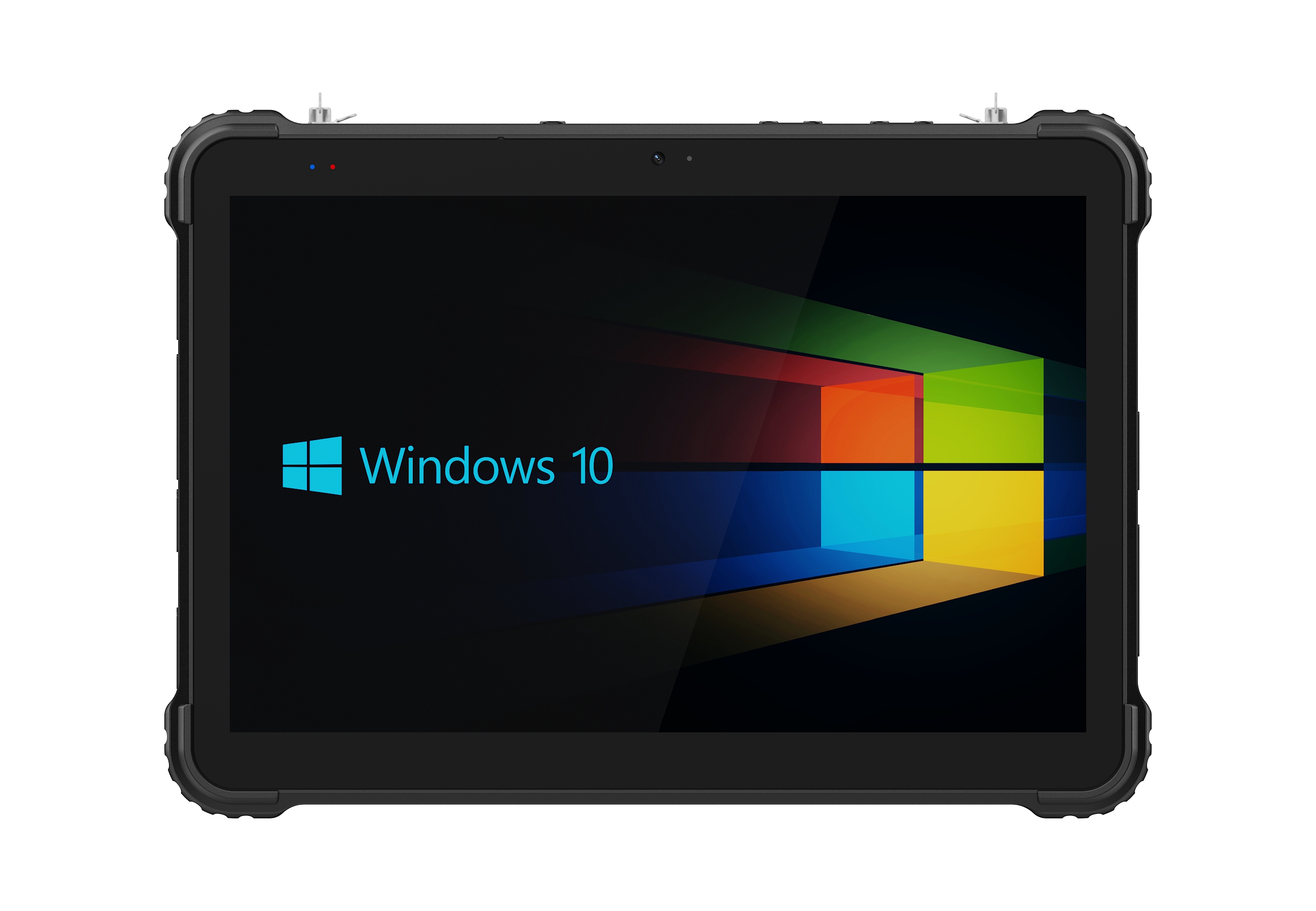

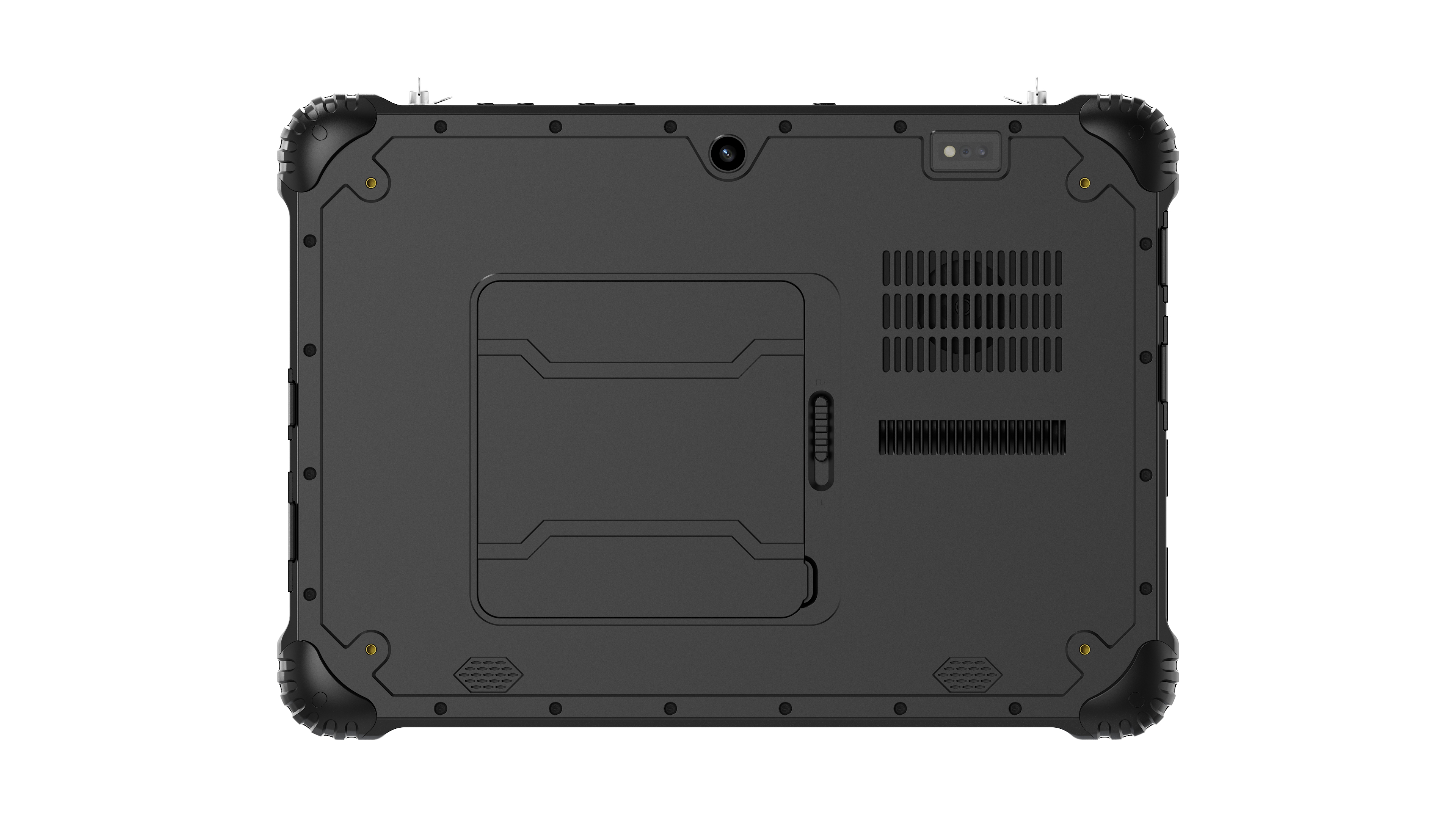

12.6 inch WINDOWS Rugged Tablet Intel Celeron N5100 processor
WR12 N5100
The WR12 is a 12.6-inch large-format Windows rugged tablet engineered for stationary industrial deployments, vehicle mounting, desktop replacement and field applications requiring generous screen real estate. Running Windows 10/11 (Pro/IoT) across 6 Intel CPU configurations — from Celeron N5100 up to 12th Gen Core i7 — it delivers laptop-grade processing power in a fully ruggedized form factor.
Built with double-shot molded housing and Corning Gorilla Glass (7H), certified to CE / FCC / CCC standards, and rated for -20°C to 60°C operation, the WR12 is designed to replace traditional desktop terminals in manufacturing, warehousing and control room environments.
Built with double-shot molded housing and Corning Gorilla Glass (7H), certified to CE / FCC / CCC standards, and rated for -20°C to 60°C operation, the WR12 is designed to replace traditional desktop terminals in manufacturing, warehousing and control room environments.
Quantity:
1. 12.6"Large Display — Desktop Productivity, Rugged Mobility
- 12.6-inch FHD+ (1920 × 1200) anti-glare TFT panel
- 550 nits high brightness (N5100: 450 nits) — readable under direct sunlight and bright factory lighting
- Corning Gorilla Glass with 7H hardness, shatter & scratch resistant
- Native glove-touch support — operable with industrial work gloves on
- 26% larger screen area than 10.1"models — ideal for SCADA, MES dashboards, CAD viewing and multi-window work
2. Six Intel CPU SKUs — Scalable Performance for Every Workload
- Entry tier: Celeron N5100 (4C/4T, 2.8GHz) / N100 (4C/4T, 3.4GHz) — 8GB RAM, optimized for data entry & kiosk use
- Performance tier: 10th Gen i5-10210Y / i7-10510Y (4C/8T, up to 4.5GHz) — 16GB RAM, for heavy industrial software
- Premium tier: 12th Gen i5-1235U / i7-1255U — 16GB RAM, flagship computing power for demanding applications
- Unified chassis & accessory ecosystem across all SKUs — simplified inventory, deployment and service
3. Full Desktop I/O — No Dongles, No Compromises
- 2× USB Type-A (1× USB 3.0 + 1× USB 2.0) — native full-size ports for scanners, printers and drives
- 1× USB Type-C (OTG), 1× HDMI for external display output
- 1× RS232 serial port — direct connectivity to legacy industrial equipment, PLCs and scales
- 1× Gigabit RJ45 Ethernet — stable wired network for fixed-station deployments
- 3.5mm audio jack, DC 3.5mm power input, Pogo Pin for dock charging
- SIM + TF combo slot — expandable storage & 4G LTE ready
4. Highly Modular Expansion — Tailor to Vertical Applications
- Optional 4G LTE (global bands) for always-connected mobile workers
- 7-system GNSS (GPS / GLONASS / Galileo / BDS / QZSS / SBAS / NavIC) — precision positioning for fleet & field service
- NFC (ISO 14443A/B, 15693) — access control, contactless authentication, asset tagging
- Optional modules: 2D barcode scanner, industrial fingerprint sensor, ID card reader, UHF RFID (ISO 18000-6C)
- Perfect fit for warehousing, manufacturing MES, public safety, healthcare and transportation
5. Industrial-Grade Ruggedness & Thermal Performance
- Operating temperature: -20°C ~ 60°C — proven reliability from cold-chain logistics to desert field operations
- Storage temperature: -30°C ~ 70°C; Humidity: 5%–95% RH non-condensing
- Double-shot molded enclosure for superior drop and vibration resistance
- 8000mAh built-in Li-polymer battery + optional 5600mAh hot-swappable pack — uninterrupted operation across shift changes
- Pogo-pin charging dock, vehicle mount and hand strap accessories available
6. Global Compliance & OEM-Ready
- Certified:CE / FCC / CCC — market-ready for Europe, North America and APAC
- Windows 10/11 Pro / IoT Enterprise licensing options
- Supports OEM/ODM branding, custom BIOS, peripheral integration and enclosure color customization
- Dimensions: 314 × 225 × 26 mm, ~1250 g — balanced for both fixed mounting and mobile carry
Typical Target Markets
Manufacturing Execution (MES / SCADA) | Warehouse Management & Forklift Mount | Fixed Kiosk & Self-Service Terminals | Public Safety & Emergency Vehicles | Healthcare Clinical Workstations | Field Service & Utility Maintenance | Transportation & Fleet Management
